Performance under vehicle impact (passive safety):
100-NE-C-R-SE-MD-0
(according to EN12767:2019)

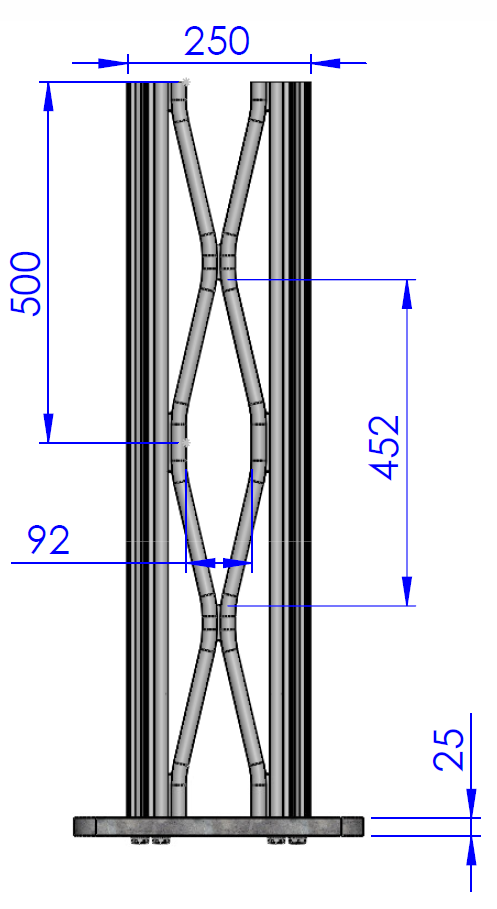

The Lattix® 4425 mast system can be used as mast for sign support, other information and surveillance equipment or other applications. The mast is delivered as a complete assembly including mast, base plate and top plate.
The mast is tested and approved according to:
- EN 12899-1, Fixed, vertical road traffic signs
- EN 12767, Passive Safety of support of structures for road equipment
Full-scale impact crash tests and simulations have been performed according to EN 12767 at a speed of 35 km/h and 100 km/h with 4,7 m mast length. Simulations show that the mast will have equal performance up to 8,62 m length.
The mast is approved for maximal 8,62 m and minimal 1,8 m from the ground to bottom of sign. Due to the risk of the penetration of the windscreen of an impacting car, the untested reduced minimum height of the lower edge of the sign shall not be lower than 2,0 m. Lower installations may be used, but risk of windscreen penetration shall be evaluated.
The sign mounted to a single mast should not weight more than 200 kg and needs to be dimensioned according to local wind loads.
All performance presumes sufficient foundation.
|
Performance under vehicle impact (passive safety) according to EN 12767:2019
|
Value
|
|
Performed speed class tests and simulations
|
35 km/h and 100 km/h
|
|
Approved speed class
|
100
|
|
Approved function class
|
NE (non energy absorbing)
|
|
Approved safety class
|
2
|
|
Durability
|
Value
|
|
Resistance to corrosion
|
Aluminium, class SP 2
|
The Lattix® 4420 mast system can be coated (powder-coated) if desired.
